Powerline

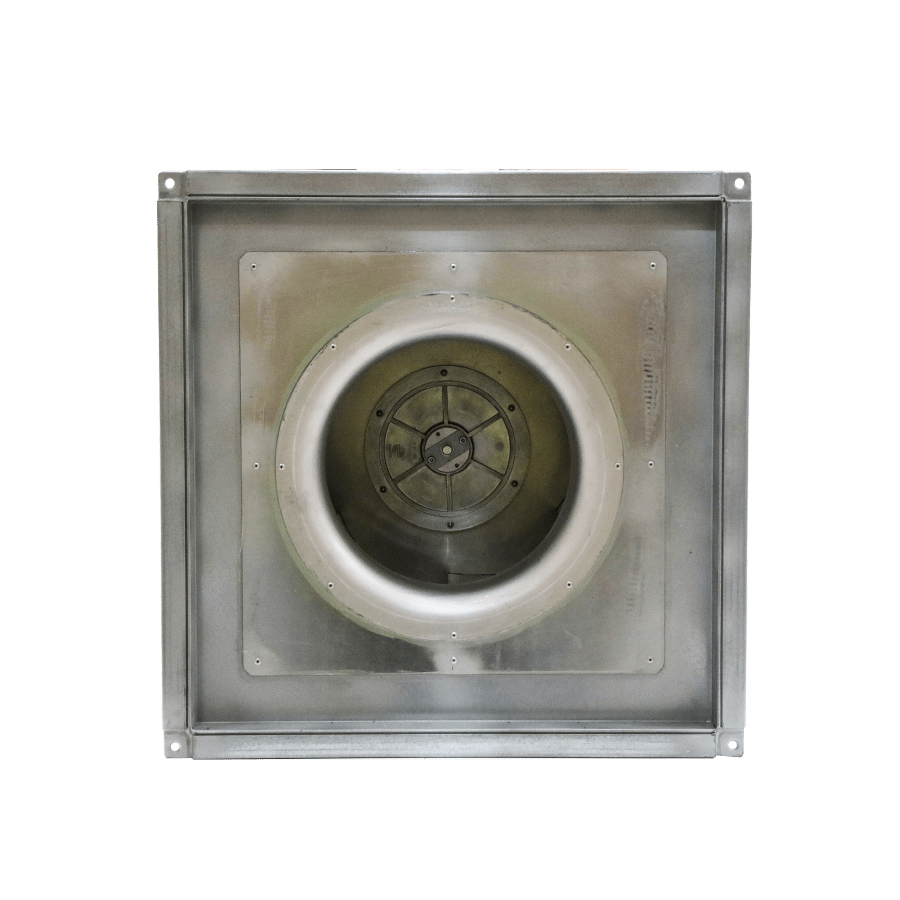

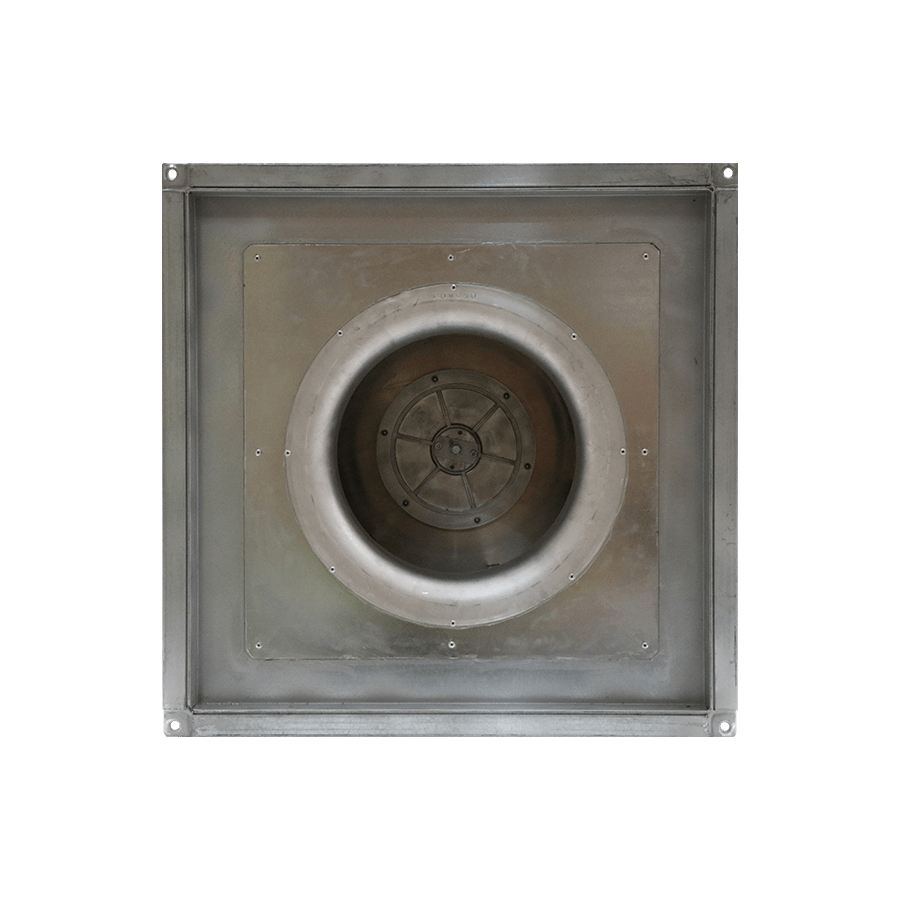

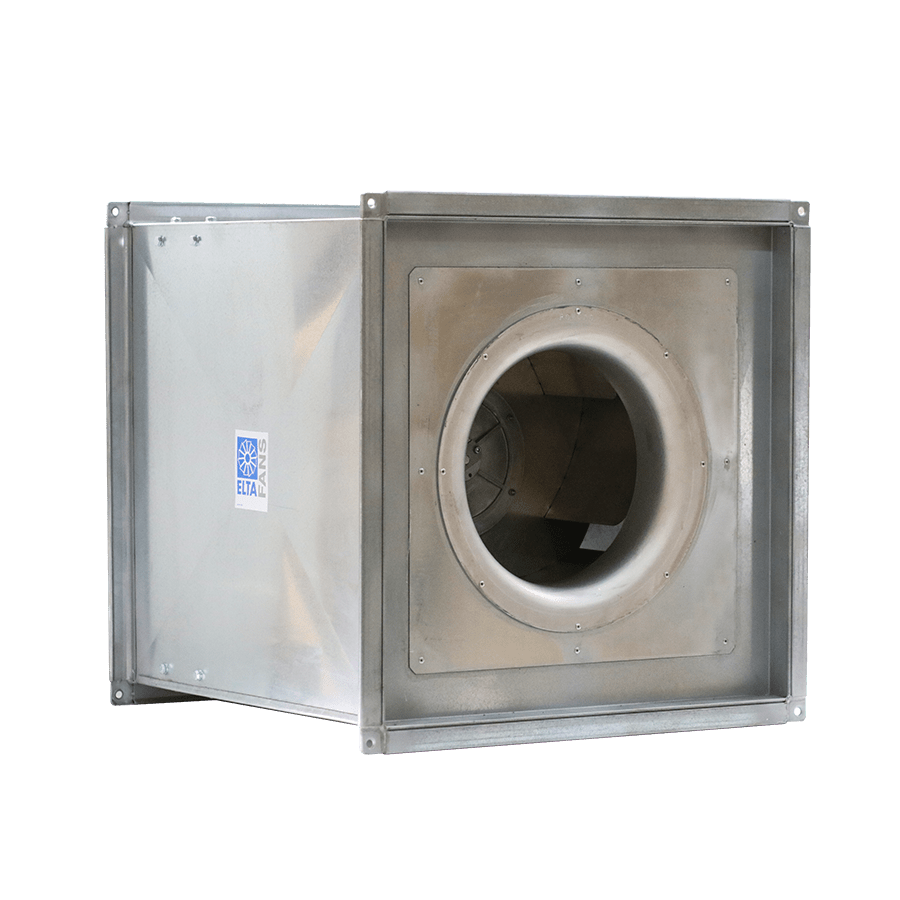

Centrifugal Box Fan
- 8 sizes from 315mm to 710mm
- Robust, lightweight galvanised steel construction.
- Direct-drive TEFC motors
- Can be used on ducted systems.
- All motors are speed controllable.
- Available in AC
Got a question about this product?
Compatible Accessories
Overview
The PowerLine Series® of In-Line Centrifugal Fans is designed for a wide range of duct mounted applications. They are most suitable in commercial and industrial applications where medium to high air pressure is required.
Features and Benefits
Design
Lightweight construction designed for a wide range of duct mounted applications. Units can be mounted in any position and feature and easy to fit flange connections.
Efficient Performance
Centrifugal backward curved Impellers made from high quality Aluminium.
Corrosion Resistance
Suitable for external mounting as standard.
Specification
Casing

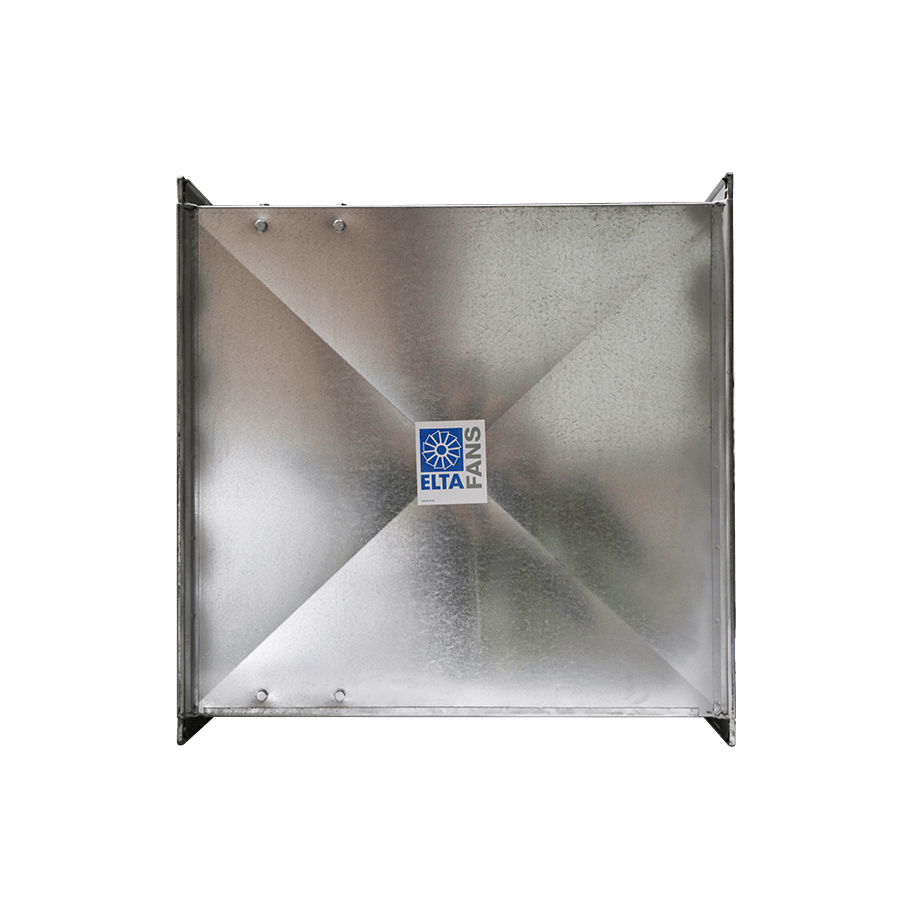

The all metal fan casing provides a long lasting and robust construction. The units have been constructed from galvanised sheet steel with with 35mm TDF profile flange connections.
Motors

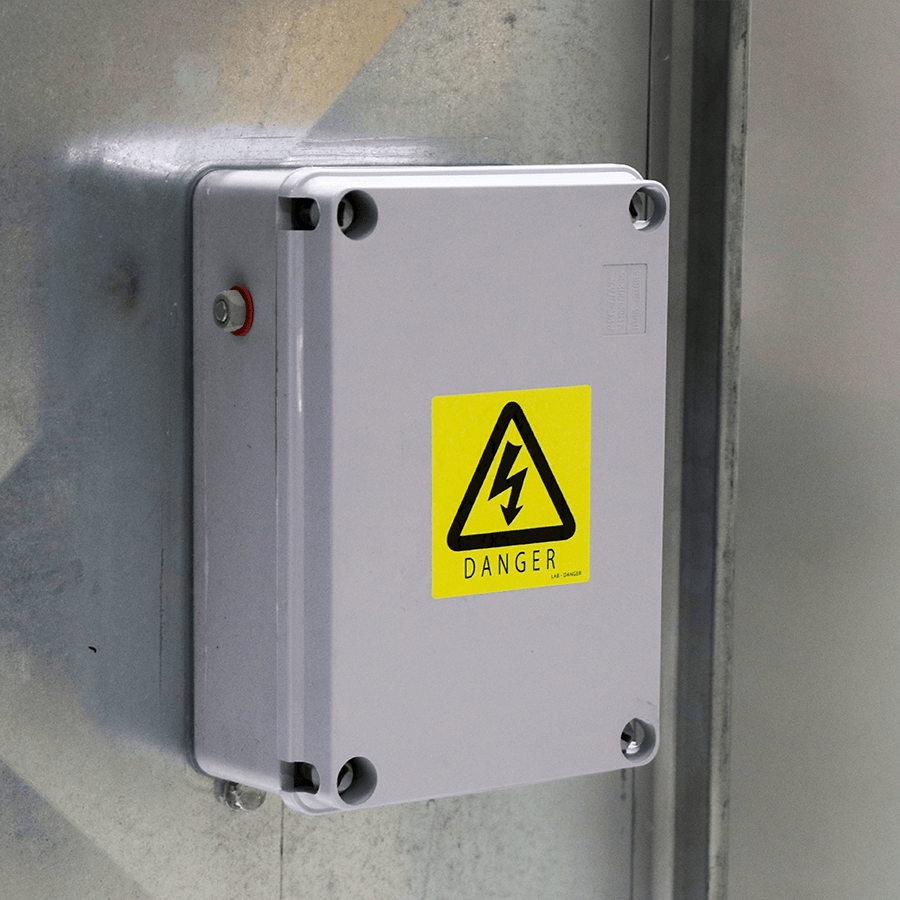

Motors are to be totally enclosed metric type to IP55, with sealed for life bearings, standard industrial paint finish and Class F insulation to EN 60034-5. Motors are to be wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing.
Impellers
Backward-curved centrifugal impellers are made from aluminium.
Control
Speed control shall be via Variable Frequency Drive.
Quality Management
All units are to be tested to ISO 5801 (airside performance) and BS 848 Part 2 (sound performance).
Accessories
Complete your setup with our range of compatible accessories designed to enhance each product:
- Mounting Brackets
- Matching Flanges
- Anti Vibration Mounts
All accessories are available through us here at Elta Fans Kuwait.
