LCS Smoke Axial

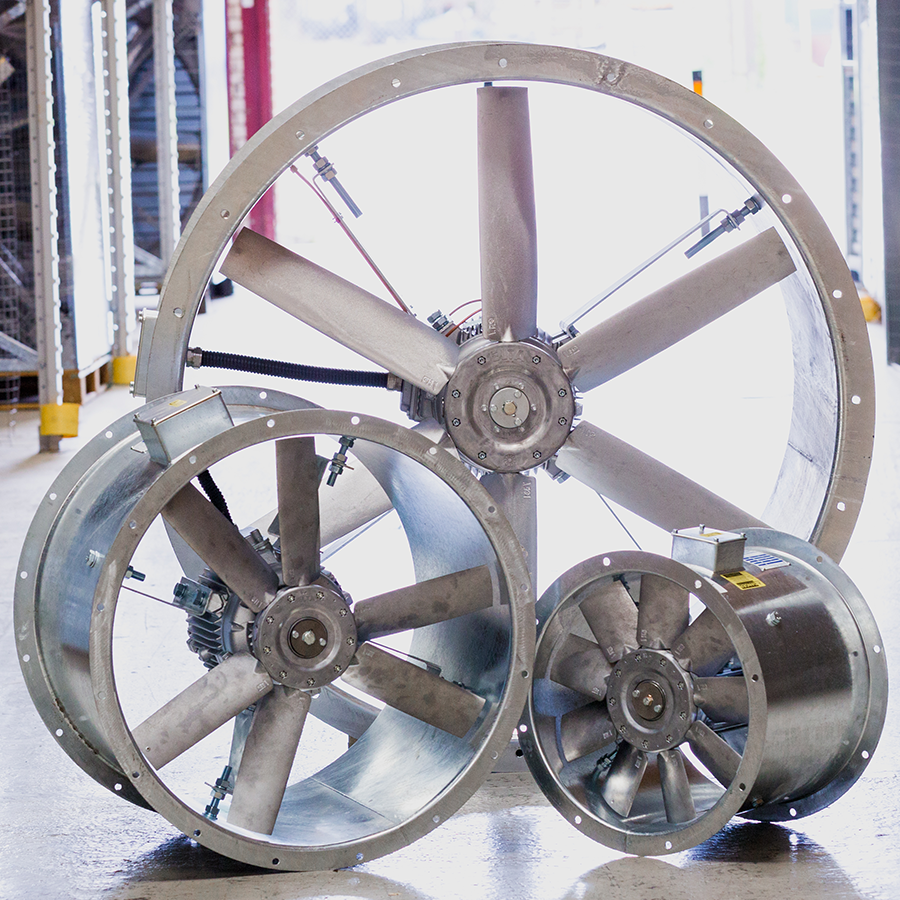

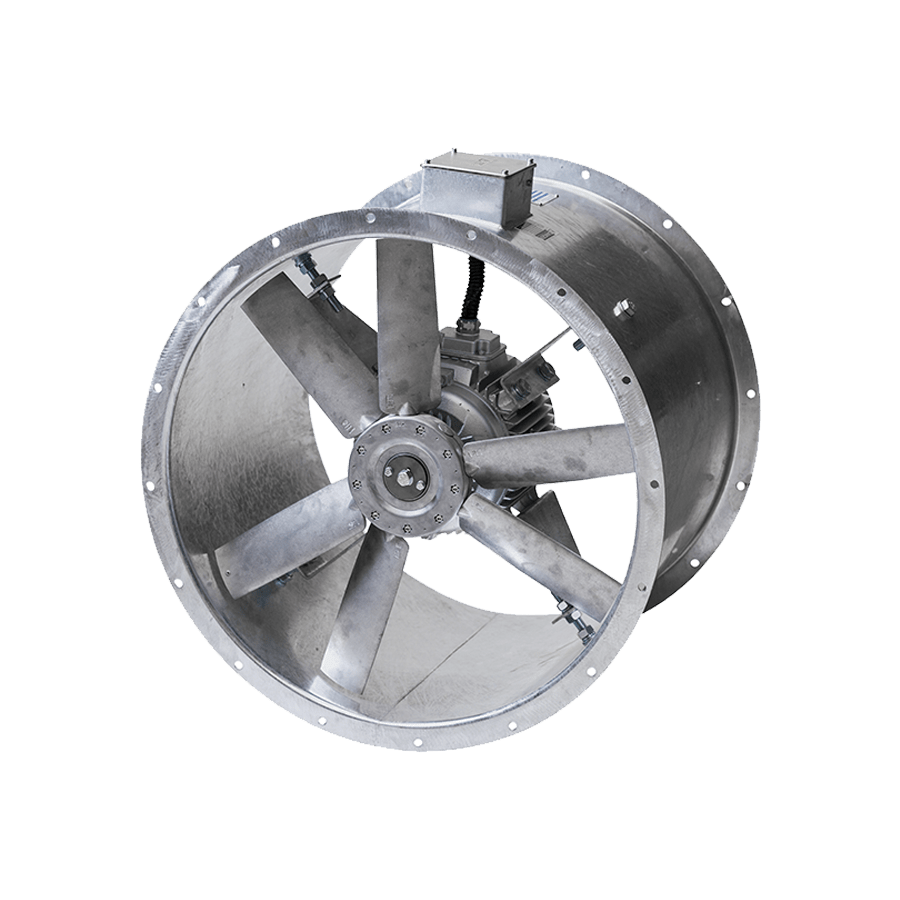

Adjustable Pitch Smoke Axial Flow Fans
- Standard sizes 315mm to 2000mm
- Casings are durable hot-dipped galvanised steel or pre-galvanised steel
- Fan selection with specific impeller pitch angle for accurate specifications
- Designed to EN12101-3 standards
- F200, F300, & F400 models with 50hz & 60hz options
- Available in AC
Got a question about this product?
Compatible Accessories
Overview
The LCS Series of Smoke axial flow fans is available in an extensive range of variants and airflow performance. Designed in accordance with EN12101-3 standards and can be supplied to meet additional region or project specifications as required.
Features and Benefits
Easy Installation
Fans are supplied with a fitted IP55 terminal box, which allows the fan to be positioned conveniently to incoming electrical inputs.
Efficient Performance
Impellers are adjustable pitch aerofoil with blades made from high quality Alumunium.
Corrosion Resistance
Suitable for external mounting as standard.
Safety & Control
A mechanical smoke extract system that is independent from external conditions allows emergency control of the situation by the fire services. The removal of smoke assists the safety of the occupants in the event of a fire.
Specification
Casing
The all metal fan casing provides a long lasting and robust construction. The units have been constructed from sheet steel with both motor and impeller mounted within the length of the unit casing. All casing parts are heavy gauge mild steel sheet, roll formed and welded, then hot dip galvanised or pre galvanised sheet.
Motors
Motors are totally enclosed metric type to IP55, with sealed for life bearings below 160 frame. Standard industrial paint finish and Class H insulation to EN 60034-5, suitable for use at normal continuous duty and a once only use under smoke operation at 200°C, 300°C or 400°C for 2 hours. Flying leads are brought out via a temperature resistant conduit system, to an external IP55 terminal box for customer cabling interface.
Impellers
Adjustable pitch aerofoil impellers are provided with blades made from high quality aluminium (LM6) natural finish. Impellers are factory set at an angle to exact customer requirement. The hubs are manufactured from die cast aluminium alloy (LM6 or LM24). Assembled impellers are dynamically balanced to ISO 14694.
Quality Management
Units are certified to EN12101-3 and LPCB third party certified. Units are designed and manufactured with procedures as defined in BS EN ISO 9001. Units are tested to ISO 5801:2007 (airside performance) and BS 848 Part 2:1985 (sound performance)
Accessories
Complete your setup with our range of compatible accessories designed to enhance each product:
- Matching Flanges
- Mounting Feet
- Anti Vibration Mounts
- Flexible Connectors
- Silencers
- Speed Controllers
All accessories are available through us here at Elta Fans Kuwait.
