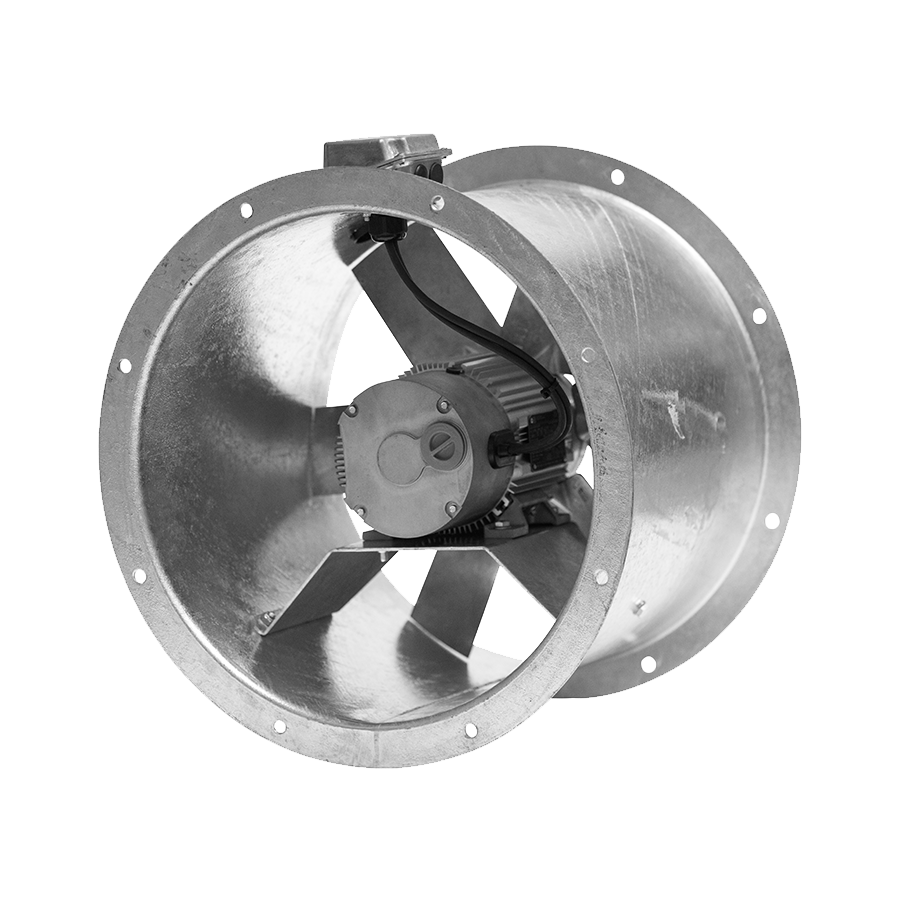

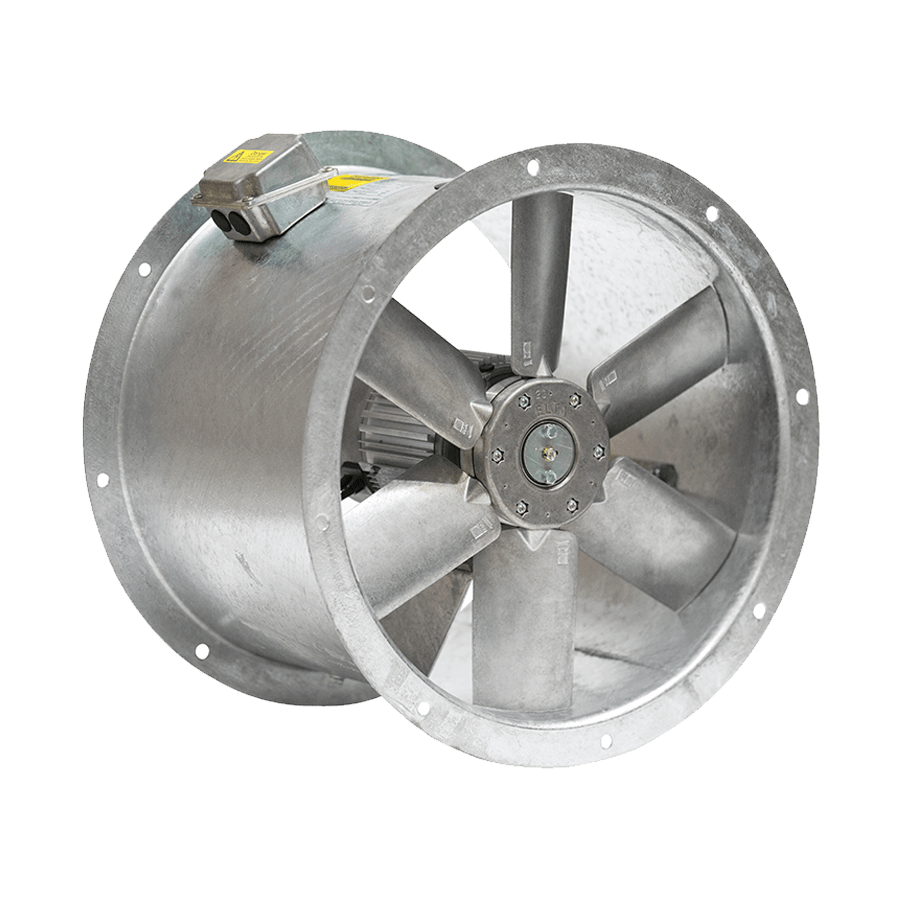

LC Long Cased Axial
Adjustable Pitch Axial Flow Fans
- Standard sizes 315mm to 2000mm
- Casings are durable hot-dipped galvanised steel or pre-galvanised steel
- Fan selection with specific impeller pitch angle for accurate specifications
- Suitable for control via Variable Frequency drive
- Available in AC
- CE/UKCA Certified
Got a question about this product?
Compatible Accessories
Overview
The LC Series of axial flow fans is available in an extensive range of variants and airflow performance. They can be manufactured in sizes extending from 315 to 2000mm diameter.
Features and Benefits
Easy Installation
Fans are supplied with a fitted IP55 terminal box, which allows the fan to be positioned conveniently to incoming electrical inputs.
Efficient Performance
Impellers are adjustable pitch aerofoil with blades made from high quality GRP or Alumunium.
Corrosion Resistance
Suitable for external mounting as standard.
Specification
Casing
The all metal fan casing provides a long lasting and robust construction. The units have been constructed from sheet steel with both motor and impeller mounted within the length of the unit casing. All casing parts are heavy gauge mild steel sheet, roll formed and welded, then hot dip galvanised or pre galvanised sheet.
Motors
Motors are to be foot mounted totally enclosed metric type to IP55, with sealed for life bearings, standard industrial paint finish and Class F insulation to EN 60034-5, suitable for operating temperatures up to +54°C. Motors are to be wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing.
Impellers
Adjustable pitch aerofoil impellers are provided with blades made from Glass Reinforced Plastic or high quality pressure die cast aluminium (LM6), natural finish. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24).
Control
Speed control shall be via Variable Frequency Drive.
Quality Management
All units are to be tested to ISO 5801 (airside performance) and BS 848 Part 2 (sound performance).
Accessories
Complete your setup with our range of compatible accessories designed to enhance each product:
- Matching Flanges
- Mounting Feet
- Anti Vibration Mounts
- Flexible Connectors
- Silencers
- Speed Controllers
All accessories are available through us here at Elta Fans Kuwait.
