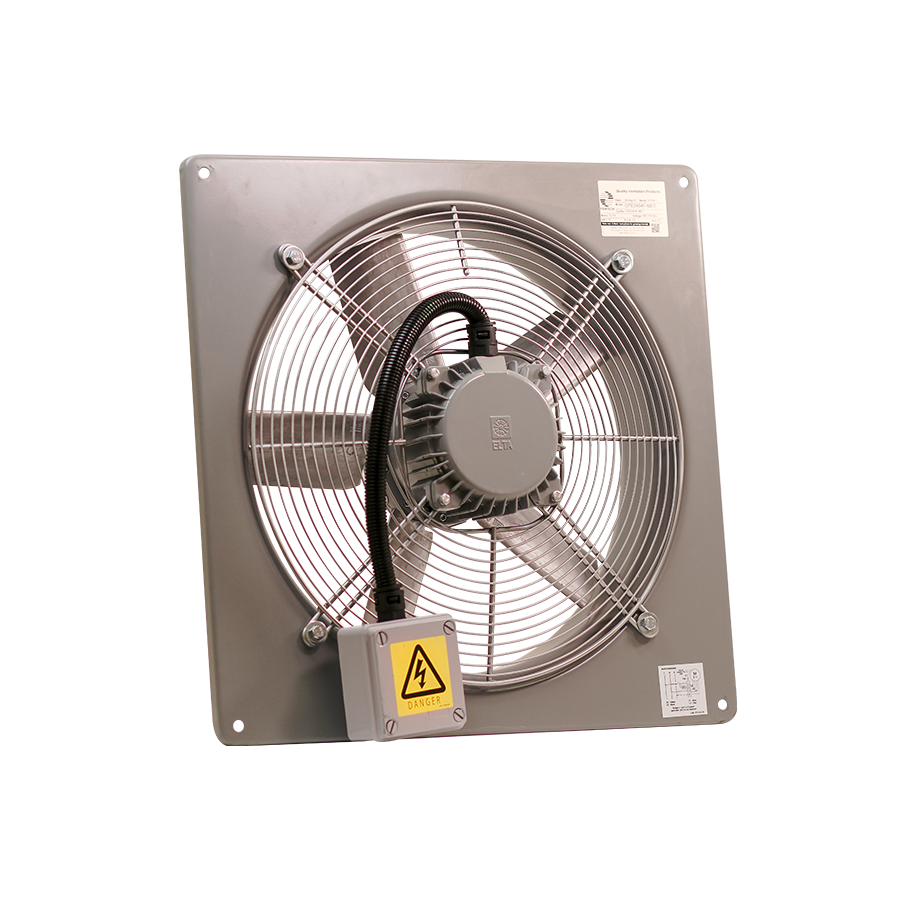

Compact 2000
Plate Mounted Axial Flow Fan
- Standard sizes 250mm to 800mm
- Highly efficient, lightweight induction motors
- Fully speed controllable
- Suitable for operating temperatures up to +70°C (speed control +50°C)
- Available in AC
Got a question about this product?
Compatible Accessories
Overview
The Compact 2000 Series of square plate axial fans is a high quality, robust product with 10 sizes ranging from 250 to 800mm diameter. They are suitable for a wide range of commercial and industrial applications and can be speed controlled to better manage energy consumption.
Features and Benefits
Intelligent Design
Compact low profile design suitable for vertical or horizontal mounting.

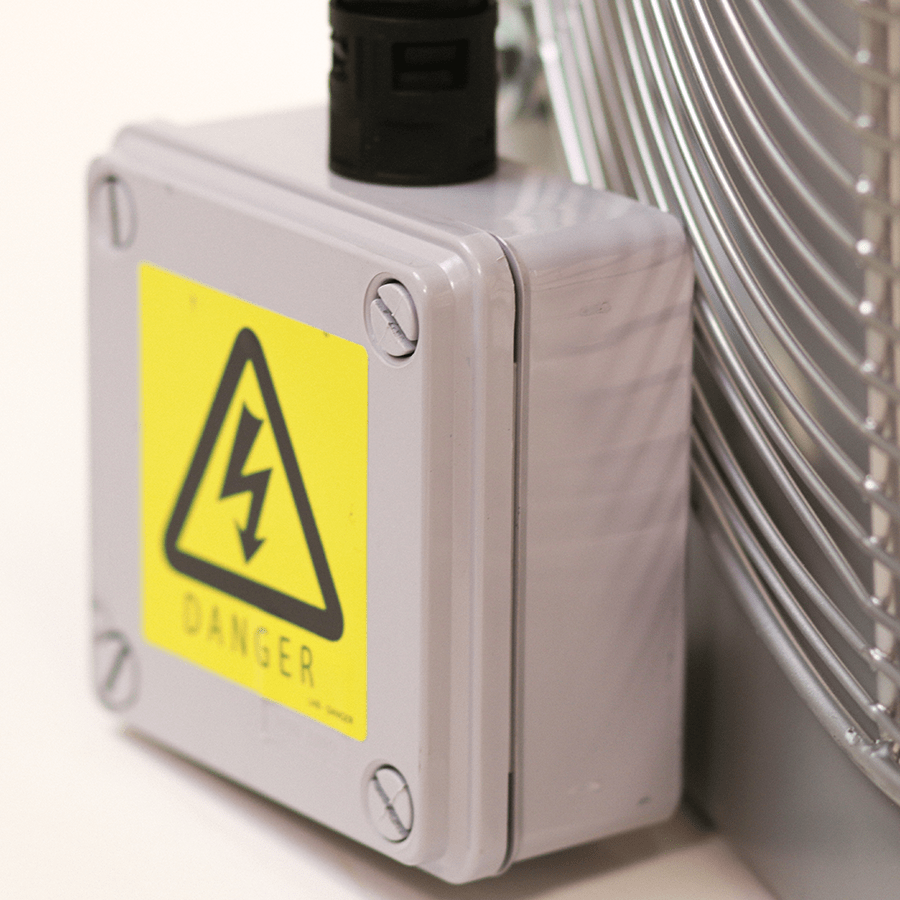

Easy Installation
A fitted terminal box allows the fan to be positioned conveniently to incoming electrical inputs.
Designed For Efficiency
Impellers are adjustable pitch aerofoil with blades made from high quality GRP.
Corrosion Resistance
Specially treated against corrosion, powder coated with polyester epoxy paint.
Controllability
A range of transformer or electronic voltage controllers are available for use with up to 630mm models and variable frequency drives.
Specification

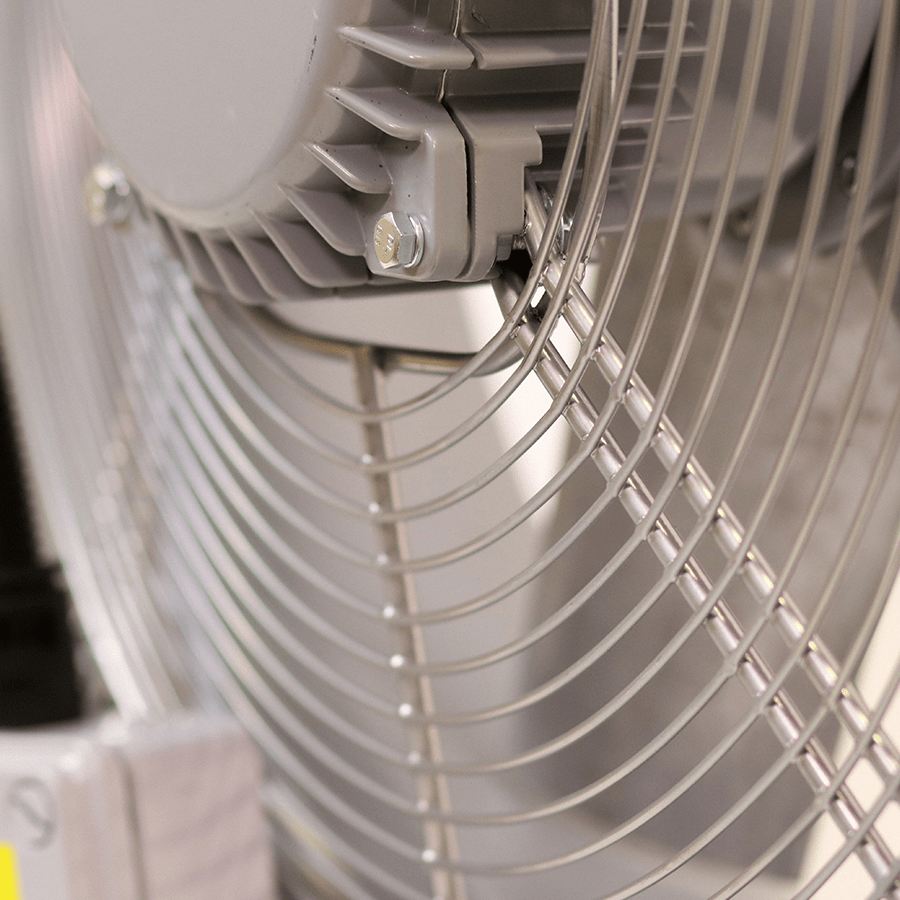

Casing
The all metal fan casing and guard provide a long lasting and robust construction. The units have been constructed from mild steel and suitably treated to ensure full corrosion protection. The guard shall be bright zinc plated or powder coated. Fan plates shall have a powder coated polyester epoxy paint finish.

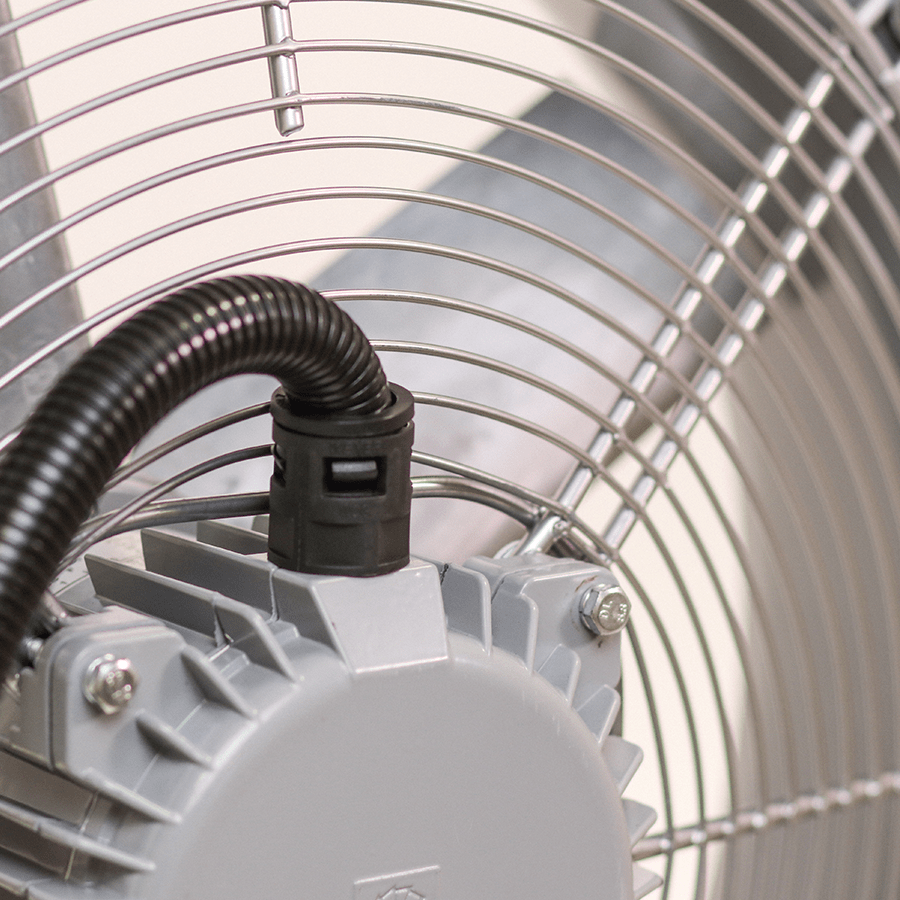

Motors
Single phase TENV motors shall be Class F insulated and fitted with integral thermal overload protection. Motors are protected against dust and water ingress to IP55. Three phase multi-voltage TENV motors are wound for either (Delta) 230V/3Ph/50Hz or (Star) 400V/3Ph/50Hz connection, suitable for speed control when used with frequency inverter controls. Fans are suitable for operating temperatures between -20°C and +70°C fixed speed and -20°C and +50°C when used with a speed controller. Electrical connection to the motor shall be provided by an IP55 terminal box fitted to a 550mm long flying lead.

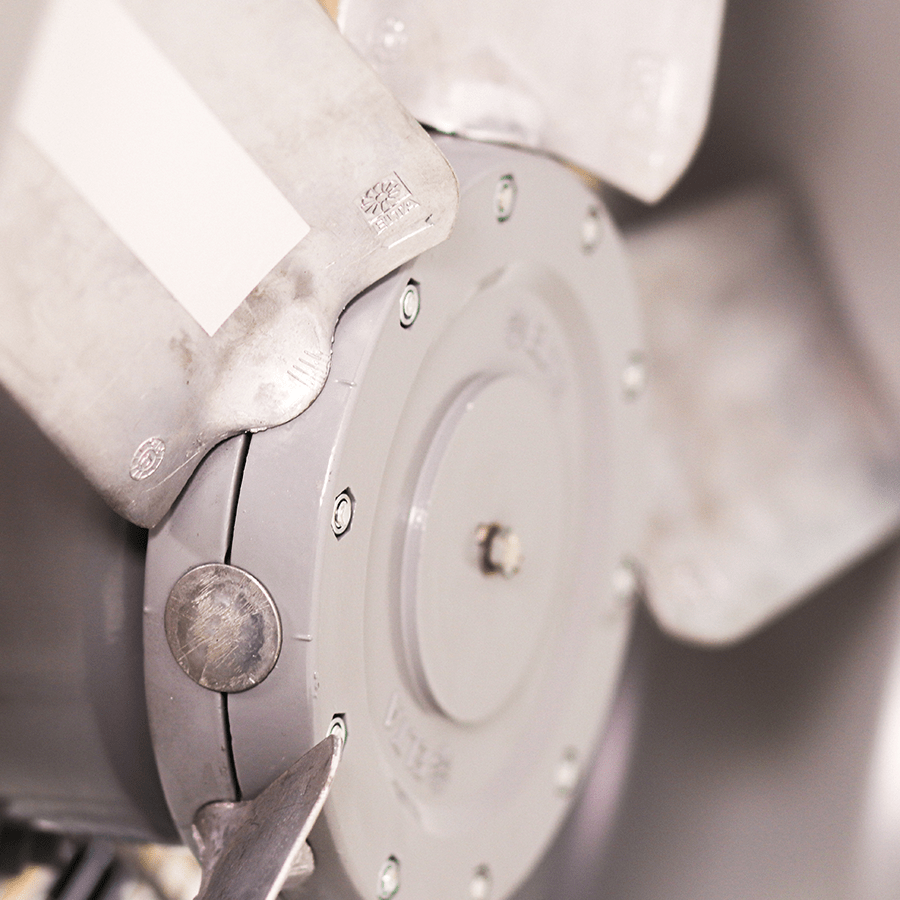

Impellers
Adjustable pitch impellers are provided with blades made from high quality GRP. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24). Assembled impellers are to be dynamically balanced to ISO 14694 Grade G6.3.
Control
Speed control shall be via variable Electronic, stepped Transformer or variable frequency drive, dependant on model.
Quality Management
Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001. All units are to be tested to ISO 5801 (airside performance) and BS 848 Part 2 (sound performance).
Accessories
Complete your setup with our range of compatible accessories designed to enhance each product:
- Impeller Guards
- Wall Gravity Louvres
All accessories are available through us here at Elta Fans Kuwait.
