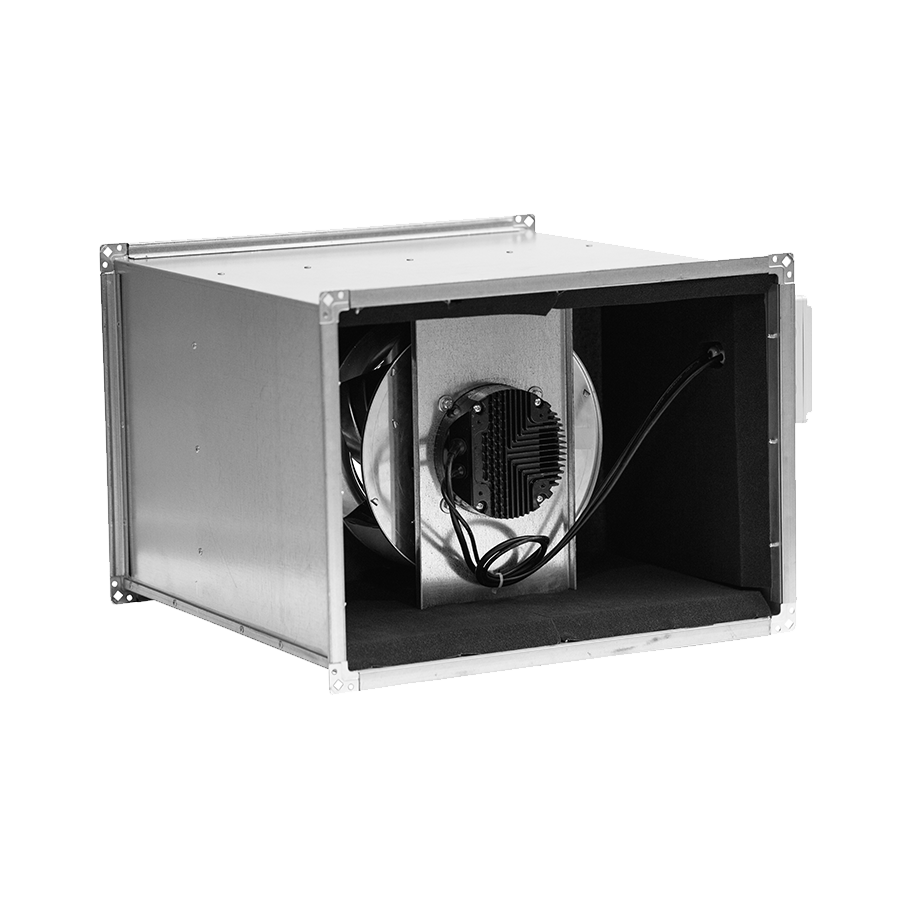

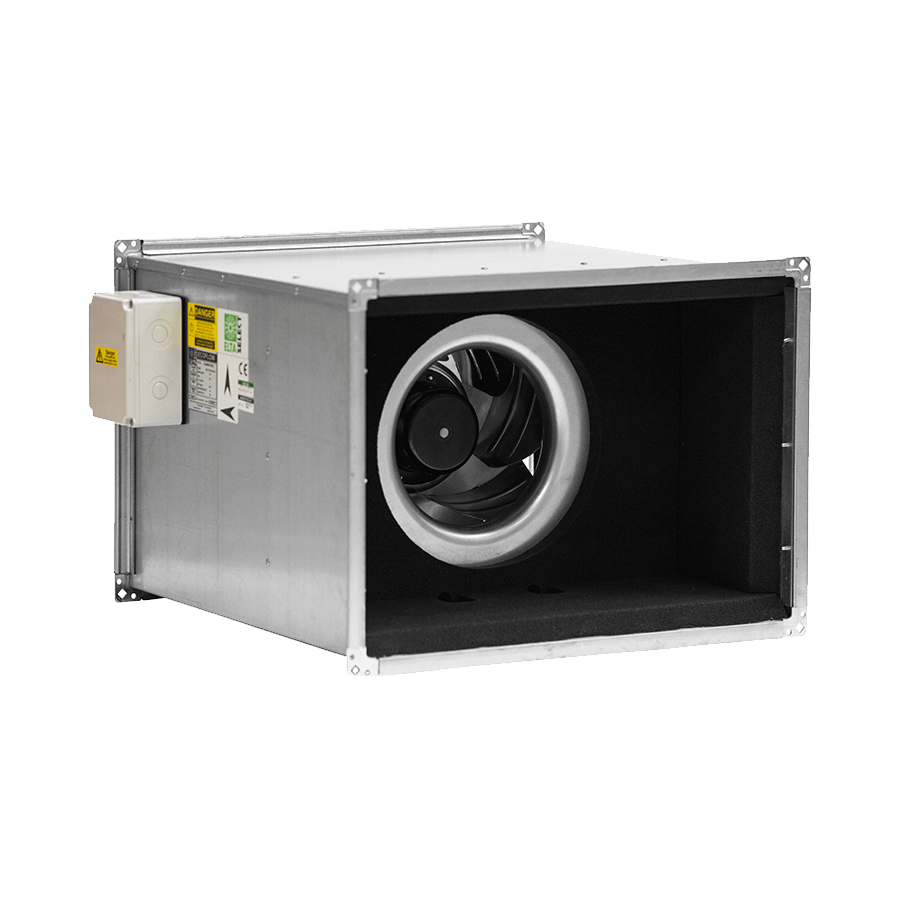

Box BLB
Centrifugal Box Fan
- 5 sizes from 260mm to 600mm
- Air volume flow rates up to 1.9m³/s
- Static pressures up to 740 Pa
- Suitable for operating temperatures up to +60°C
- Lightweight galvanised sheet steel casing
- Acoustically lined as standard
- Available in EC
Got a question about this product?
Compatible Accessories
Overview
The Box BLB fan uses advanced motor technology coupled with a straightforward design ensures the BLB is a high performing fan for a wide range of uses.
Features and Benefits
Low Noise
Each unit is acoustically lined internally with Class O rated (BS 476 Parts 6 and 7) fire resistant acoustic foam lining minimising breakout noise levels.
Easy Installation
To facilitate ease of installation, all models are designed for direct connection to the standard 20mm Doby flange system as standard.
Easy Commissioning
All units are supplied with an integrated commissioning control PCB allowing single speed selection and limiting maximum speed if used with an external potentiometer.
Controllability
EC motors providing precise speed control via potentiometer or BMS. Reduced fan speeds can provide significant cost-savings through lower energy consumption in both mechanical energy of motors and on the conditioning of replacement air.
Efficient Performance
Aerodynamic fan design with a backward curved centrifugal impeller directly driven by an EC external rotor motor, provides low specific fan powers, increased efficiency and precise, stepless speed control.
Specification
Construction
Manufactured with robust 1.5mm thick pre-galvanised mild steel sheet, treated internally with 25mm thick fire resistant Class “O” rated acoustic foam lining (BS 476 Parts 6 and 7).
Weather Resistance
Units are suitable for external installation.
Motor
The BLB range of units has EC external rotor motor fitted as standard. The IP44 motor contains sealed for life bearings. All motors are suitable for use in ambient air conditions up to +60°C. Electrical connection shall be via an IP55 terminal box mounted on the side for easy customer connection
Impeller
High efficiency backward curved centrifugal impeller. Dynamically balanced to ISO1940-1 Grade G6.3 and directly driven by EC motors
Accessories
Complete your setup with our range of compatible accessories designed to enhance each product:
- Mounting Brackets
- Anti Vibration Mounts
- Speed Controllers
All accessories are available through us here at Elta Fans Kuwait.
